Single Girder Goliath Cranes

Low maintenance and high cost efficiency are the hallmarks of Single Girder Goliath Cranes. We offer the best quality in this type of cranes which are based on the latest technology, are integrated with proper safety features and are appropriate for heavy load applications. Our Single girder goliath crane is been extensively used in industries like the mines, quarries, shipping yards, construction, road sides, etc.

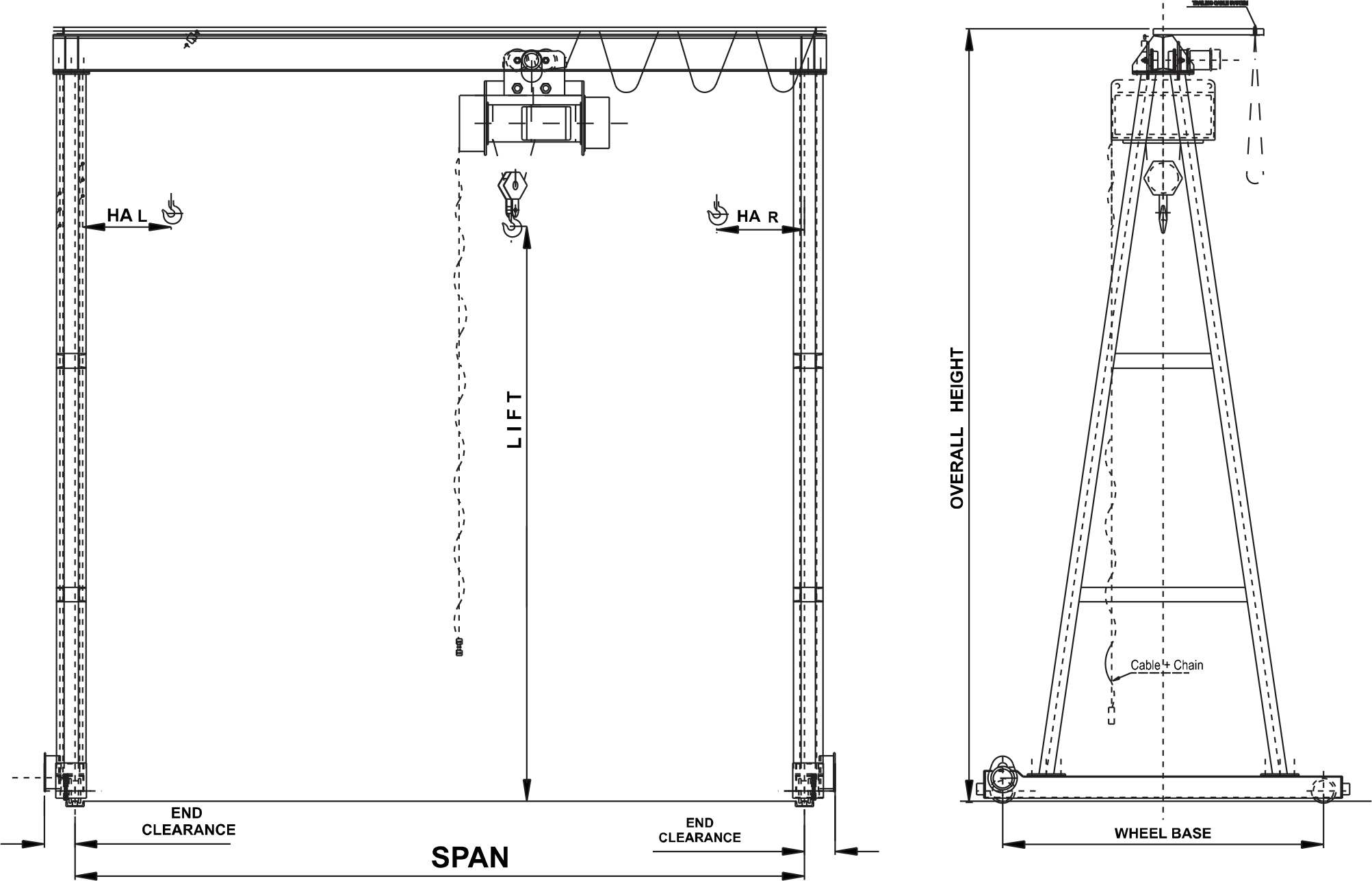

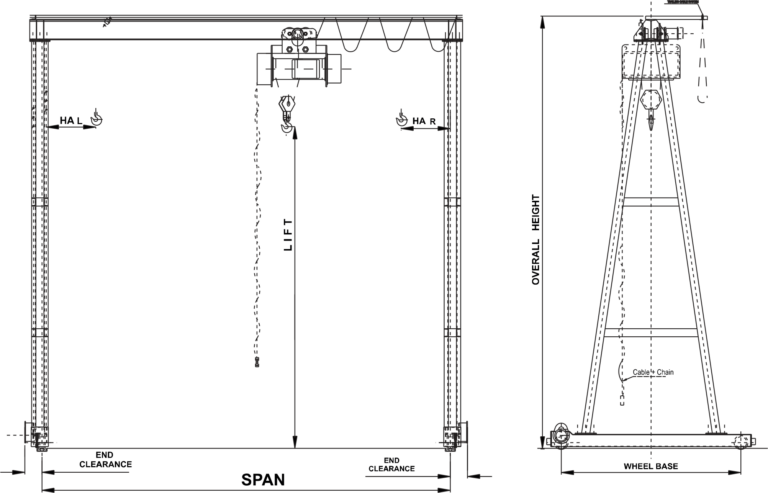

Line Drawing of Single Girder Goliath Cranes

Crane Cap (Ton)	Span (mtrs.)	WB (mm)	HR (mm)	Overall Crane Height (mm)	Wheel Load (Ton)	Crane Weight (Ton)
1	10	2900	200	7236	1.6	4.4
	12.5	2900	200	7336	1.7	4.8
	15	2900	200	7436	1.8	5.3
	17.5	2925	200	7536	2	5.9
	20	3350	200	7736	2.2	6.9
2	10	3000	200	7388	2.2	4.7
	12.5	3000	200	7488	2.3	5.2
	15	3000	200	7588	2.4	5.75
	17.5	3000	200	7688	2.6	6.3
	20	3000	200	7888	2.8	7.325
3	10	3100	250	7568	2.8	5.1
	12.5	3100	250	7668	2.9	5.6
	15	3100	250	7768	3.1	6.025
	17.5	3100	250	7868	3.2	6.7
	20	3350	250	8068	3.5	7.75

Crane Cap (Ton)	Span (mtrs.)	WB (mm)	HR (mm)	Overall Crane Height (mm)	Wheel Load (Ton)	Crane Weight (Ton)
5	10	3200	250	7770	4	5.875
	12.5	3200	250	7990	4.2	6.4
	15	3200	250	8090	4.4	7.15
	17.5	3200	250	8112	4.6	7.9
	20	3350	250	8272	4.8	8.875
7.5	10	3300	300	8282	5.5	7
	12.5	3300	300	8364	5.7	7.65
	15	3300	300	8446	6.0	8.425
	17.5	3300	300	8504	6.1	9.075
	20	3350	300	8606	6.6	10.5
10	10	3300	300	8364	6.9	7.55
	12.5	3300	300	8404	7.1	8.1
	15	3300	300	8544	7.2	8.725
	17.5	3300	300	8606	7.7	10.25
	20	3350	300	8326	7.8	11

Notes

1. All the cranes are with satndard 6 mtrs. lift, dimension & weights are approximate & may change as per actual design parameters & size
2. Capacity - Safe working load to be lifited
3. Span - Distance between rail centers
4. WB- Wheel Base
5. HR - Minimum head room required
6. EC - Minimum end clearance
7. From 10T to 35T - Long travel wheels are 4 nos.
8. From 40T to 50T - Long travel wheels are 8 nos.
