JIB Crane
We offer electrically operated JIB Cranes in the range from 250 Kg. to 7 ton capacity.
JIB cranes are an important part of material handling system. They can be easily rotated as per the need. The design of this crane is such that it compensates for swing, radial thrust load and under rated load with ease. We offer a wide range in Jib cranes.
The principal features of our JIB crane are :-
- Light weight
- Durable : Resistant to wear & tear
- Produces high friction
- Economical rate.

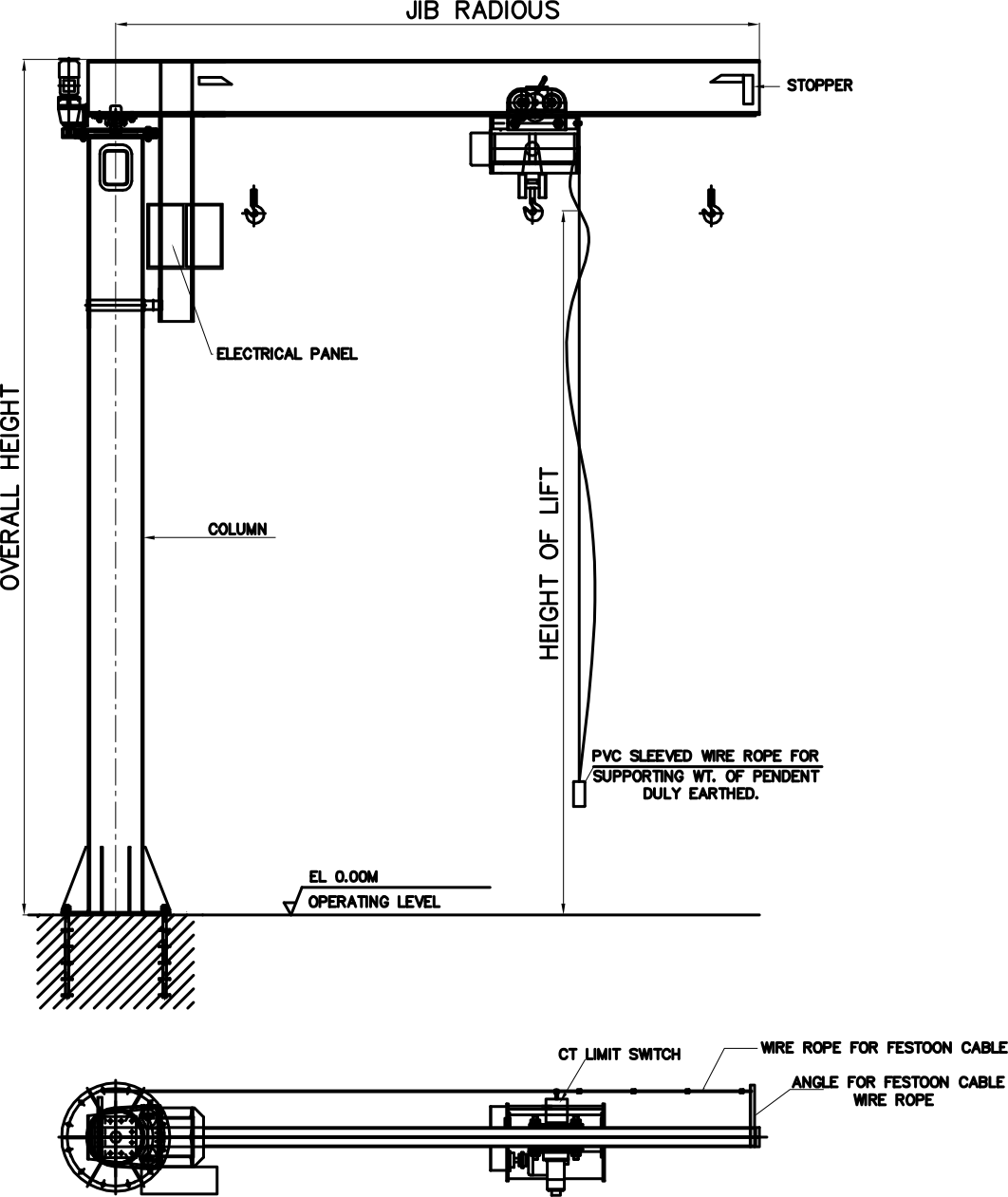

Line Drawing of JIB Cranes
- Technical Specifications
| Capacity (Ton) | ARM Redus (mtrs.) | Lift (mtrs.) | Slewing | Approx Crane Weight With Hoist (Ton) |
|---|---|---|---|---|
| 0.5 | 3 | 3 | Manual | 1.8 |
| 4 | 4 | Manual | 2.2 | |
| 5 | 5 | Manual | 2.8 | |
| 6 | 6 | Manual | 3.2 | |
| 1 | 3 | 3 | Manual | 2.2 |
| 4 | 4 | Manual | 2.6 | |
| 5 | 5 | Manual | 3.2 | |
| 6 | 6 | Manual | 4.0 | |
| 2 | 3 | 3 | Manual | 2.5 |
| 4 | 4 | Manual | 3.2 | |
| 5 | 5 | Manual | 3.8 | |
| 6 | 6 | Manual | 4.5 |
| Capacity (Ton) | ARM Redus (mtrs.) | Lift (mtrs.) | Slewing | Approx Crane Weight With Hoist (Ton) |
|---|---|---|---|---|
| 3 | 4 | 4 | Electrical | 4.2 |
| 5 | 5 | Electrical | 4.8 | |
| 6 | 6 | Electrical | 5.7 | |
| 7 | 7 | Electrical | 6.8 | |
| 4 | 4 | 4 | Electrical | 4.5 |
| 5 | 5 | Electrical | 5.9 | |
| 6 | 6 | Electrical | 6.7 | |
| 7 | 7 | Electrical | 7.6 | |
| 5 | 4 | 4 | Electrical | 5.7 |
| 5 | 5 | Electrical | 6.5 | |
| 6 | 6 | Electrical | 8.3 | |
| 7 | 7 | Electrical | 9 |
