Double Girder EOT Cranes

These cranes are ideal for lifting and conveying loads of more than 1 Metric Ton for a span of over 35meters. These cranes come with two torsion free box girders. All the components that go into manufacturing these cranes are tested for quality and reliability in the long run. Our Double girder EOT crane offers excellent heavy load lifting capability, wide spans and high performance.

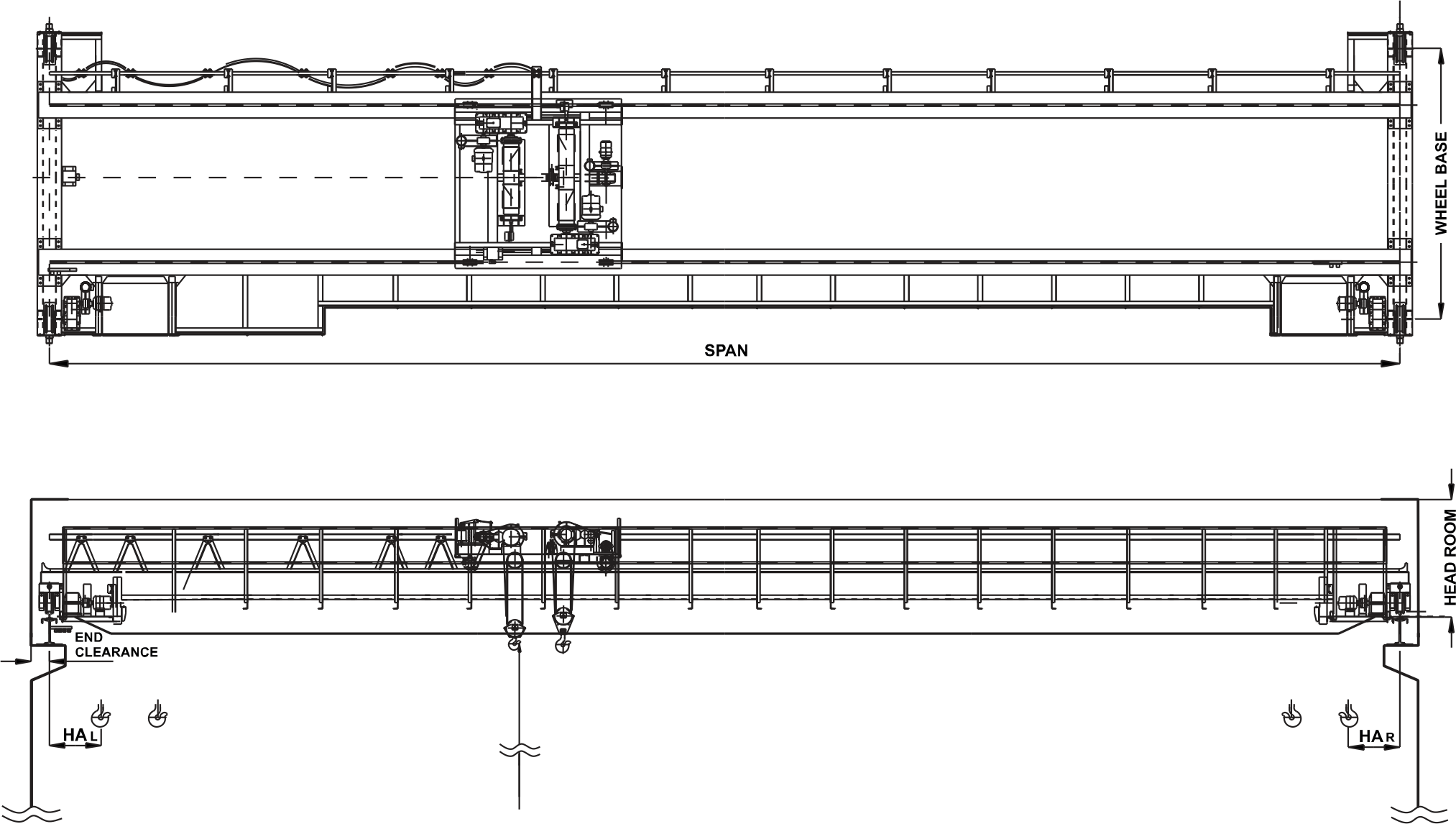

Line Drawing of Double Girder EOT Cranes

Crane Cap (Ton)	Span (mtrs.)	WB (mm)	HR (mm)	EC(mm)	Wheel Load (Ton)	Crane Weight (Ton)
10	12.5	3600	1500	250	7.7	9.85
	15	3775	1500	250	8.1	11
	17.5	3775	1500	250	8.5	12.5
	20	3800	1550	250	9.2	15.5
	22.5	3800	1550	250	9.4	16.25
	25	3825	1550	250	12.5	18.75
15	12.5	4200	1650	250	12.5	12.75
	15	4200	1650	250	12.5	15
	17.5	4250	1650	250	12.5	15.75
	20	4257	1650	250	15	18
	22.5	4300	1650	250	15	20.75
	25	4300	1650	250	15	22.75
20	12.5	4450	1650	300	15	14
	15	4450	1650	300	15	15
	17.5	4450	1650	300	15	17.25
	20	4500	1650	300	17.5	21.25
	22.5	4525	1650	300	17.5	22
	25	4725	1650	300	17.5	26.75
25	12.5	5150	1850	300	17.5	16.75
	15	5150	1850	300	20	19
	17.5	5200	1850	300	20	23
	20	5200	1850	300	20	25
	22.5	5225	1850	300	22.5	28
	25	5400	1850	300	22.5	34.75

Crane Cap (Ton)	Span (mtrs.)	WB (mm)	HR (mm)	EC(mm)	Wheel Load (Ton)	Crane Weight (Ton)
30	12.5	5175	1850	350	22.5	17.5
	15	5200	1850	350	22.5	21
	17.5	5225	1850	350	23	22.5
	20	5225	1850	350	24	25.75
	22.5	5300	1850	350	25	32
	25	5400	1850	350	25	32.75
35	12.5	5175	1950	350	25	19.75
	15	5200	1950	350	25	21.75
	17.5	5225	1950	350	26	25.25
	20	5225	2050	350	27.5	28.75
	22.5	5300	2050	350	27.5	31.75
	25	5400	2050	350	30	35.75
40	12.5	4425	2050	400	15	20.5
	15	4425	2050	400	15	22.5
	17.5	4475	2050	400	15	26.25
	20	4475	2050	400	17.5	29.5
	22.5	4475	2050	400	17.5	33
	25	4475	2050	400	17.5	39.75
50	12.5	4750	2100	400	17.5	23
	15	4750	2100	400	20	26
	17.5	4850	2100	400	20	29.75
	20	5050	2150	400	20	34.25
	22.5	5150	2150	400	22.5	40
	25	5150	2150	400	22.5	43.75

Notes

1. All the cranes are with satndard 8 mtrs. lift, dimension & weights
2. Capacity - Safe working load to be lifited
3. Span - Distance between rail centers
4. WB- Wheel Base
5. HR - Minimum head room required
6. EC - Minimum end clearance
7. From 10T to 35T - Long travel wheels are 4 nos.
8. From 40T to 50T - Long travel wheels are 8 nos.
